From SDI to IP using intoPIX
Transport of HD, 4K, 8K over IP with SMPTE 2110 (-22) with TicoXS (JPEG XS) enabling you to carry efficiently any video formats over IP with full flexibility and all the benefits of intoPIX bandwidth-efficient solutions. Read more about the VSF TR08 or about the JPEG XS IETF RFC.
Transport of 4K or 8K over existing HD-SDI / 3G-SDI
The mapping of the TicoXS (JPEG XS) or Tico (SMPTE RDD35) mezzanine compression to carry UHDTV 4K 60P over a single HD-SDI or 3G-SDI cable has been fully specified in the SMPTE RDD35 and by intoPIX. intoPIX provides all the needed building blocks to create a 4K over 3G-SDI / HD-SDI or 8K over 3G-SDI solutions. Have a look at the intoPIX TicoXS IP-cores and peripheral IP to map the compression over SDI.
Transport of 4K or 8K over existing SMPTE2022-6 IP protocol
As SMPTE ST2022-6, defines the transport of HD-SDI or 3G-SDI over IP, using TicoXS or TicoRDD35, it is easy to leverage an existing SMPTE 2022-6 system to carry up to three to six UHDTV 4K 60P streams over a single 10 GbE port using the SMPTE 2022-6 standard.
Simplify your Live Production Workflow
in the LAN, over the WAN & to the Cloud
Replacing SDI - Replacing Uncompressed Video - Moving to IP (ST2110) with Efficiency
In the LAN
- Cheaper cables (CAT5e<1Gpbs, CAT6<10Gbps)
- Friendly for PC
- No need to re-deploy new cables
Over the WAN
- Cost effective bandwidth: 10x-15x smaller than uncompressed video
- Ease the remote production, VAR, inter-facilities
To the Cloud
- Efficient in CPU, GPU and FPGA
- Low-latency access (AWS CDI,..)
- Low power (less CPU intensive) processing
Beyond 4K HDR Video:
8K Production with intoPIX
Over a single 2.5GbE, 5GbE, 10GbE
Over a single 3G-SDI / 6G-SDI / 12G-SDI
It has already been proven. intoPIX can enable you to carry a 8K 60fps video stream over a single 3G-SDI, 6G-SDI or 12G-SDI link with lossless quality.

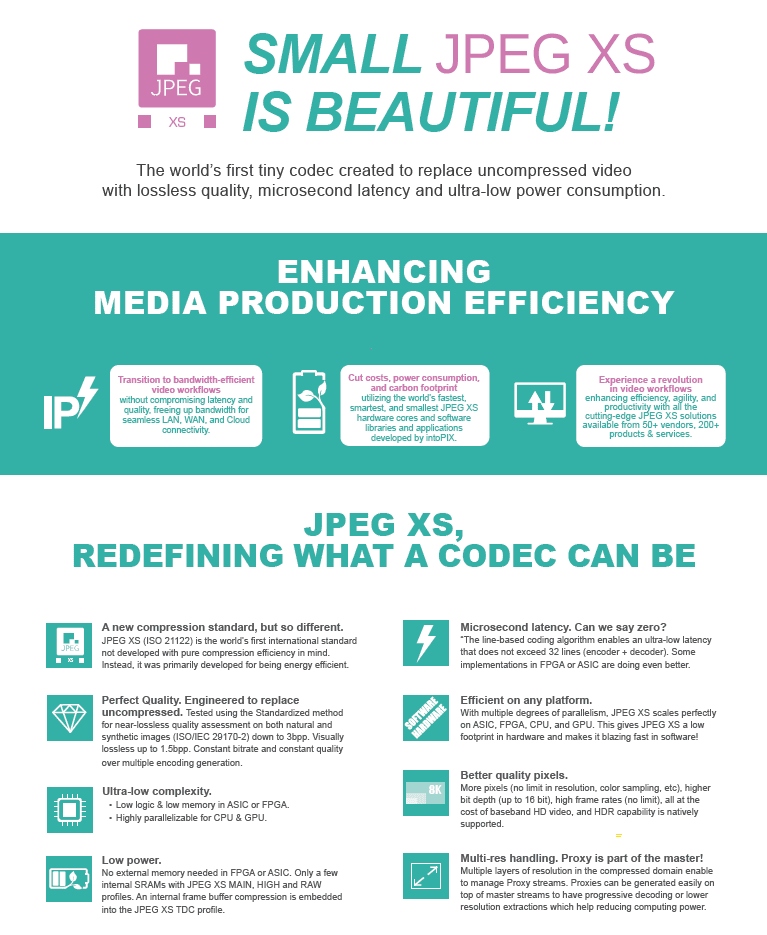

Bandwidth-efficiency throughout your whole IP network with JPEG XS
intoPIX's innovative image processing and video compression solutions create bandwidth-efficiency straight from the sensor of HD or UHD broadcast cameras throughout your entire workflow via IP networks.
A Standard for
Compressed Video over IP
Part 22 of the widely used SMPTE ST2110 defines a standardized way for transporting JPEG XS compressed video over IP workflows. The introduction of compressed video to ST 2110 intensifies the already existing advantages of moving to IP based workflows – flexibility, scalability, and unlimited accessibility. Allowing users to transport generally high-bandwidth videos like 4K and 8K over cost-effective COTS 1GbE/10GbE networks.
Contribution and Remote-Production
with JPEG2000 & VSF TR01
intoPIX JPEG 2000 perfectly suits broadcast needs. Its improved compression efficiency will provide a pristine image quality. Its resolution scalability seamlessly allows the extraction of small resolution proxies from the full resolution, a very useful feature on the acquisition site and during production.
Also, its intra-frame nature provides low latency processing throughout the whole chain, increased error resilience during transmission and easy editing (butt-splicing). Last but not least, its capacity to avoid additional image degradation at each encoding and decoding step provides constant quality multi-generations during the numerous post-production processes of the workflow. Furthermore the unique Ultra-Low-Latency mode developed by intoPIX provides additional benefits for Live transmission
VSF TR01 V1:
J2K over SMPTE 2022 1/2
intoPIX has successfully participated interoperability tests organized by VSF with intel-and Xilinx(AMD)-based reference designs. Moreover our efforts have been awarded by an EMMY AWARD in 2015. We have developed a wide range of JPEG2000 encoder & decoder IP-cores, as well as memory controllers and MPEG2-TS IP cores to enable our customer to create competitive VSF TR01 solutions.
VSF TR01 V2:
J2K with Ultra-Low-Latency
In fields such as live events or broadcast, where time accuracy is a must and delays are not acceptable, an additional Ultra Low Latency capability has been added to the JPEG2000 IP cores,allowing processing delay of less than a frame between encoding and decoding. intoPIX works within the VSF J2K group to update the VSF TR01 specification to make use of the intoPIX JPEG2000 ULL encoder/decoder cores interop-erable in broadcast facilities.
New Capture workflow using TicoRAW
New Capture workflow using TicoRAW
TicoRAW allows low latency RAW Bayer streaming:
- from Camera to Cloud;
- from Camera to Datacenter;
- from Camera to Studio;
- from Camera to the Remote CCU.
The Benefits of using TicoRAW in Live Production & Virtual Production:
- Transmit directly High Quality RAW Bayer streams (ie. over SMPTE 2110-22) to the cloud or to remote location with zero latency, lower bandwidth and low complexity.
- Leverage powerful Remote Production resources (ISP Debayering, Stitching, Virtual View, Machine Learning, Automation, Region of interest,...).
- Avoid the use of specific robotics, get fixed cameras to capture larger resolutions (with 8K cameras, camera array, 360 cameras,..) in studio or stadium with more efficiency.
- Capture & Transmit more RAW data from HighSpeed or 8K Cameras.
The Camera Array Example
A multitude of small cameras are installed in a circle around a stadium, in order to capture the whole field and not miss anything of the game. With TicoRAW, the huge amounts of RAW Bayer data generated by these cameras can be transferred without any latency or loss of quality into the cloud for live production with a much efficient bitrate and preserving the full flexibility of RAW.
Video compression:
A long term solution
Image compression is often seen as a transitional solution before network bandwidth is increased to carry uncompressed video again. However, thanks to the lossless quality and near-zero latency of intoPIX's broadcast solutions, it can be a sustainable replacement with various advantages over uncompressed video:
Higher reliability
Thanks to the use of forward error correction (FEC), compressed video has lower chances of packet loss on IP networks than uncompressed.
Future-proof
Simply extend from HD to 8K, increase bit-rates, frame-rates, ... without the need of extensive network constructions.
More cost-effective
Implementing intoPIX's innovative compression can greatly reduce network investments and allows use of COTS IP products.
Industry leaders
trust intoPIX's innovative technologies
“intoPIX Tico is an essential component in our solutions for contribution and distribution. And it provides a magic 4:1 reduction in video bitrate without the drawbacks of a conventional codec."
David Mitchinson, Solutions Manager at AppearTV
“We selected intoPIX JPEG 2000 technology for the VS902 platform based on its performance, interoperability and full compliance with the latest technology standards such as the JPEG2000 Broadcast Profile. In addition, their dedicated support and expertise in JPEG 2000 technology enables us to develop highly customized solutions for our customers.”
“All of this would not have been possible without intoPIX TICO supporting resolution up to 7680x4320 pixels, while keeping all its famous performances. Our customers are just expecting to work with raw quality and near-to-zero delay, and only TICO would bring this reality on affordable FPGA."
Yoshizu Taira, OEM Manager at Village Island
“TICO’s imperceptible latency and visually lossless compression allows us to build bigger systems with less bandwidth, which translates directly to cost savings for our clients. What’s not to like?”
Daf Rees, Deputy Director of Operations at ArenaTV
“Uncompressed is great inside a facility, but as soon as you’re going longer distances, or over very challenged links it’s very helpful to have a compression technology. TICO and JPEG XS are both excellent examples of using a basic compression technology to reduce bandwidth, while providing production-grade imagery.”
"Typically, if you would have 4 HD resources available at the broadcast facility, and want to go 4K, you will lose them all. By supporting TICO over SDI, our customers were able to support 4K over 1x3G-SDI, and so keeping the same resources they had for HD. Rather than going to 4K and having to lose the other three HD resources."
Steven Deschuyteneer, Director of Worldwide Sales at DELTACAST
