Deep dive into SMPTE ST2110-22 with a Wireshark Dissector

13.10.21 11:13 AM By Julie

Dissector in Lua for JPEG-XS compressed video in RTP and SMPTE 2110-22

intoPIX releases a SMPTE 2110-22 Wireshark dissector that allows verifying your SMPTE 2110-22 captured streams. An easy tool to check that your streams are properly built according to the VSF TR08 recommendations and the JPEG XS IETF RTP. Just download it via the form hereunder !

To use it in Wireshark:

  1. Install this dissector in the proper plugin directory - see "About Wireshark/Folders" to see Personal and Global plugin directories. After putting this dissector in the proper folder, "About Wireshark/Plugins" should list "ST2110-22.lua"

  2. In Wireshark Preferences, under "Protocols/ST2110-22", set dynamic payload type

  3. Capture packets of ST 2110-22

  4. "Decode As" those UDP packets as RTP

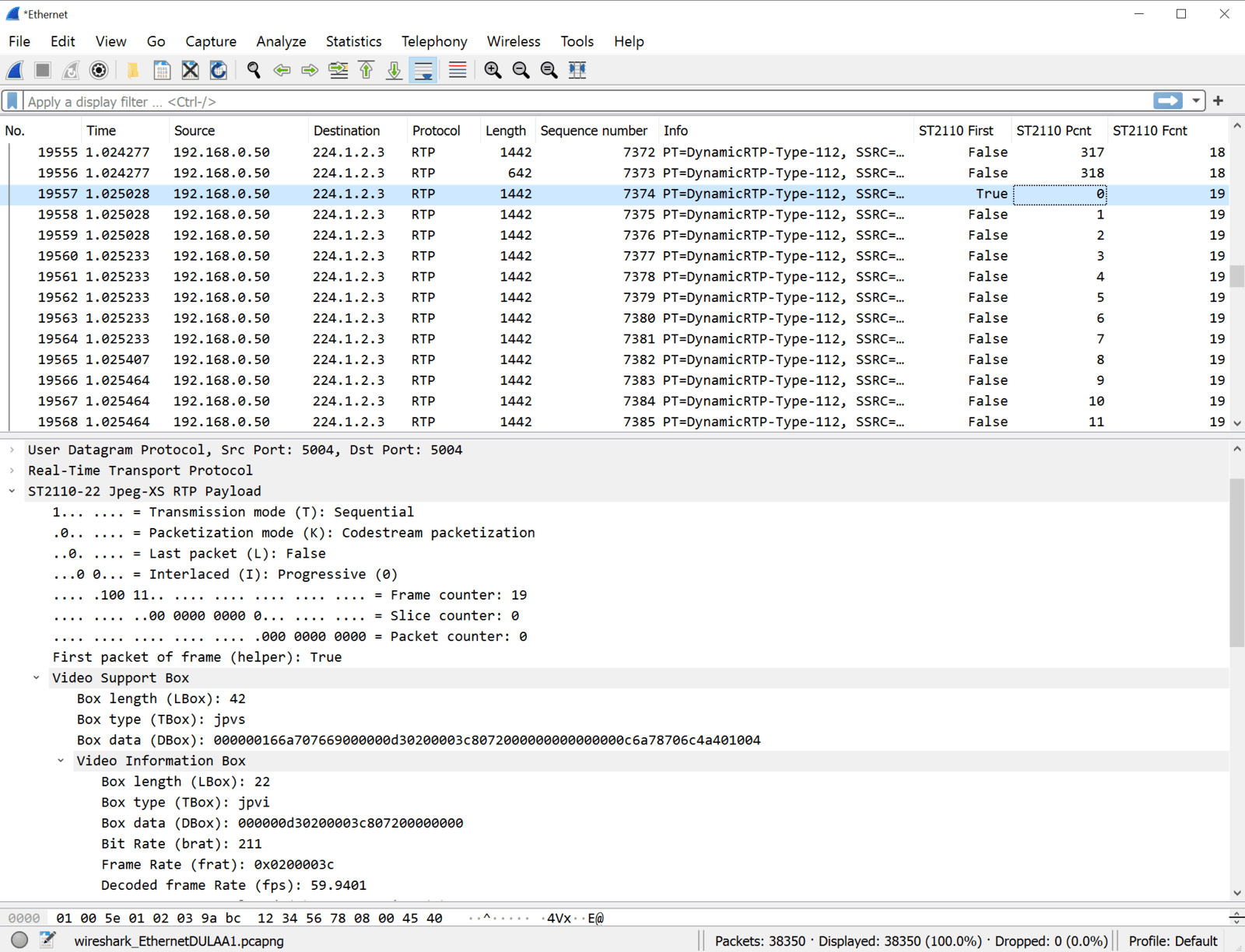

  5. You will now see the ST 2110-22 Data dissection of the RTP payload

Do not hesitate to provide us any feedback, questions or comments to improve it via support@intopix.com !

Looking for other types of SMPTE 2110 dissectors (-20, -40) ? You can find them on the GitHub from the Networks Engineering & Operations (NEO) Advanced Technology (Disney):  https://github.com/NEOAdvancedTechnology
