• Titanium EDK

    Embedded Development Kit
    for Streaming Low-Latency, High-Quality Video over ARM SoC
    with SMPTE 2110, JPEG XS and IPMX.


Titanium Viewer
Overview
Tech Specs
Downloads
IP APPs for IPMX/SMPTE2110

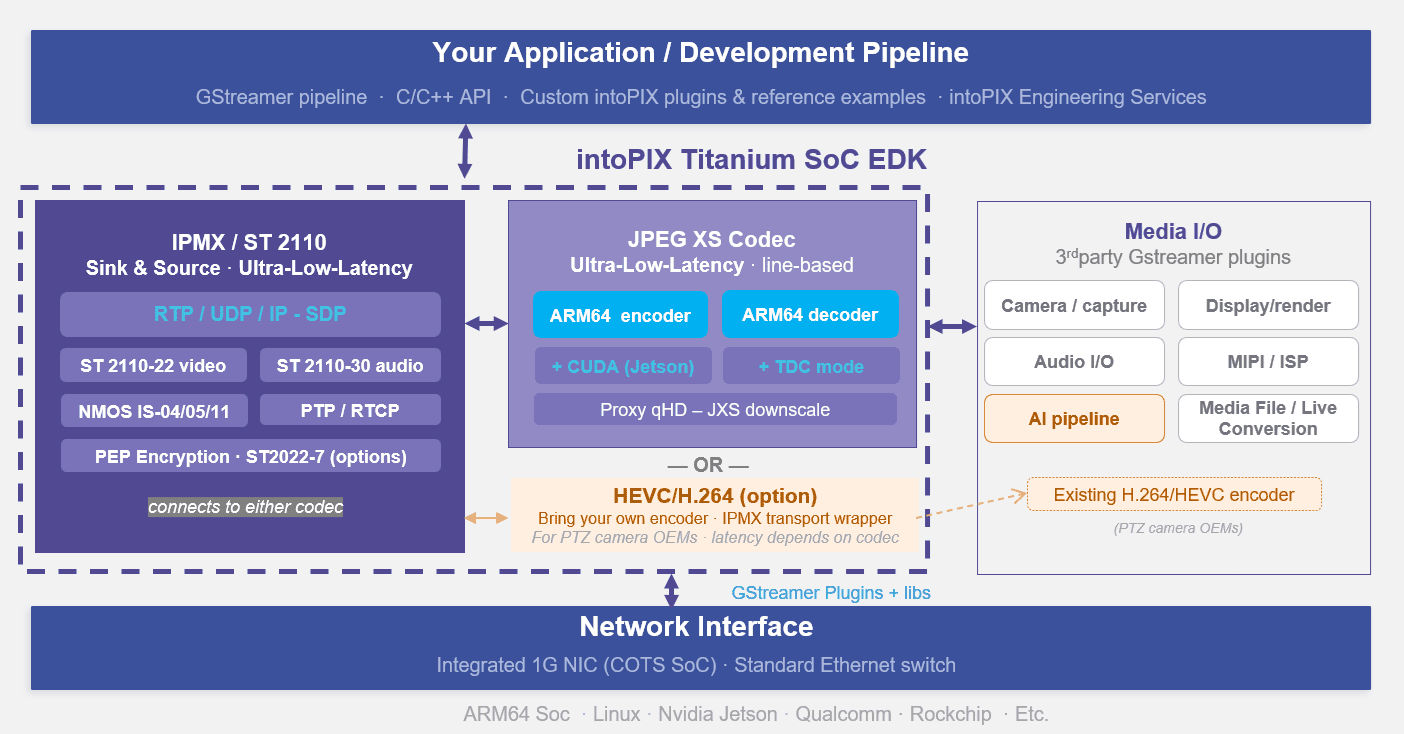

Titanium EDK for ARM SoC: Achieve Low-Latency Streaming with ARM SoC and intoPIX

The Titanium EDK is a powerful Embedded Development Kit optimized for ARM-based SoCs (including ARM64, Nvidia Jetson, and AMD Xilinx SoCs) that delivers high-quality, low-latency streaming using the intoPIX JPEG XS codec. It enables seamless transmission of video over SMPTE ST 2110 and IPMX standards with ultra-low latency and high-performance codec acceleration.

Key Benefits

  • SMPTE ST 2110 / IPMX Compliant: Supports SMPTE ST 2110-22 (compressed video using JPEG XS), and ST 2110-30 (audio) standards with NMOS registration
  • JPEG XS Codec: Integrated intoPIX JPEG XS for high-quality video compression and low-latency performance (on ARM, GPU or FPGA according to your selected SoC project)
  • Multi-Resolution Support: Capable of handling video resolutions from HD 720p to 4K 2160p, with support for YCbCr/RGB color spaces, 4:2:2/4:4:4 subsampling, and up to 12-bit color depth.
  • Ultra-Low-Latency Performance:Designed to deliver ultra-low-latency video and audio streaming, perfect for real-time and professional video distribution.
  • ARM SoC Acceleration: Optimized for ARM64 SoCs (including also Nvidia Jetson and Orin SoC or AMD Adaptive FPGA SoC), leveraging both intoPIX hardware and software codec accelerations.
  • Integrated Network Interface: Supports Gigabit Ethernet (1G)
  • Customizable: Offers flexibility in developing custom applications, tailored to various real-time streaming needs. intoPIX team can provide assistance (including design services) to make your project a success.

Technical Specifications, Hardware Requirements and Availability

  • Video Encoding/Decoding (*)

    • Codec: intoPIX JPEG XS
    • Resolution: 720p, 1080p, 2160p (4K)
    • Color Formats: YCbCr/RGB, 4:2:2, 4:4:4
    • Bit Depth: 8/10/12-bit
    • Frame Rates: 24, 30, 60, 120 fps
  • Audio Support:

    • SMPTE ST 2110-30 compliant
    • Multiple audio channel support
    • Sample rates: 44.1 kHz, 48 kHz, 96 kHz
  • Networking:
    • Interfaces: Integrated SoC Gigabit Ethernet (1G, 2.5G)
    • Protocols: SMPTE ST 2110, IPMX, RTP/UDP
  • ARM SoC Compatibility, including:

    • Nvidia Jetson Xavier, Orin series
    • AMD Adaptive SoC : Xilinx Zynq Ultrascale+ MPSoC
    • Qualcomm Snapdragon processors
    • RockChip processors
  • Development Environment:

    • Operating System: Linux/Ubuntu, embedded OS
    • API: C/C++ API for easy integration
    • Software Support: Optimized for integration with NMOS (Networked Media Open Specifications) for stream discovery and control
    • Driver Support: Provided for both hardware and software codec acceleration
  • Power Consumption:

    • Optimized for low-power ARM architectures
  • Additional Features:
    • Real-time monitoring of video streams
    • Customizable bit-rate control and bandwidth optimization
    • Software updates and support via our Customer Program
  • Availability:  the delivery time may vary according to the selected SoC platform. Some packages are still in pre-release.

(*) vary according to the ARM SoC capabilities

Low Latency & High Quality Streaming via Your ARM SoC

Titanium EDK leverages your embedded device with the power of the new JPEG XS standard, offering low latency high quality streaming capabilities.

   Ideal Applications:

  • Low-Latency AV-over-IP Workflows: Perfect for professional audio-visual applications in live production, educational, and event-based setups.
  • Live Video Production: Ideal for real-time video capture, transmission, and monitoring in professional broadcast production & studio environments.
Contact us to get more info about TITANIUM
?
?
