    The smallest ST 2110 / IPMX TX/RX ​design for FPGA SoC
    ​— ​ultra-low-latency video streaming over standard IP

    Under 5 ms glass-to-glass. 4K visually lossless on any content. 1 GbE standard Ethernet. A complete embedded development kit for AMD Zynq Ultrascale+ — enabling OEM developers to add ultra-low-latency audio/video streaming over IP to any product, with full SMPTE ST 2110 and IPMX compliance built in from day one.

    OPEN PROTOCOLS

    RTP - UDP - IP - SDP

    PTP IEEE 1588

    SMPTE ST 2110

    JPEG XS

    IPMX / VSF TR-10

    NMOS IS-04/05/09/11

    Contact our experts

    AT A GLANCE

    < 5ms
    Glass-to-glass
    LATENCY

    1 GbE
    STANDARD EMBEDDED
    ETHERNET

    4K60
    VISUALLY
    LOSSLESS

    IPMX
    INTEROP TESTED
    IP STACK

    Unveiled at NAB 2025

    Titanium FPGA SoC EDK · intoPIX

    The smallest ST 2110 / IPMX design for FPGA SoC

    Ultra-low-latency 4K video streaming over standard IP networks

    A complete embedded development kit for AMD Zynq Ultrascale+. Add ultra-low-latency audio and video over IP to your product, with SMPTE ST 2110 and IPMX compliance built in from day one.

    Open protocols

    • RTP / UDP / IP / SDP
    • SMPTE ST 2110
    • IPMX / VSF TR-10
    • NMOS IS-04/05/09/11
    • PTP IEEE 1588
    • JPEG XS

Any industry. Zero compromise on latency.

The Titanium FPGA SoC EDK solves one problem: getting high-quality audio and video from A to B over a standard IP network, with the lowest possible latency, on an efficient FPGA SoC implementation. It works with open protocols your network already speaks and it leverages the power of the new JPEG XS standard co-created by intoPIX. And if your market requires SMPTE ST 2110 or IPMX compliance, that's built in too.

WHAT YOU GET

Runs over your existing AMD Zynq GigE port. Even in 4K

No external PHY, no dedicated NIC, no special cabling — the entire ST 2110 / IPMX stack runs over the AMD Zynq Ultrascale+ integrated 1G GigE port. Plug into any standard switch and stream compressed 4K with pristine quality over the same network your other equipment already uses.

THE TRANSPORT

RTP over UDP/IP — open and standard

Video packets travel as RTP over UDP/IP — the same protocol family used by VoIP and video conferencing. Stream metadata is described in SDP, readable by any standard receiver on the network.

THE LATENCY

Under 5 ms, end to end

Measured Glass to Glass (video-in to video-out), including the network hop. Suitable for surgical cameras, teleoperation systems, machine vision, and any application where delay is unacceptable.

OPEN PLATFORM

Everything included — your secret sauce stays yours

FPGA IP cores, PetaLinux libraries, reference apps, and a C/C++ API are all provided. Your application logic, your AV interface, and your product differentiation sit on top — fully documented, fully in your control.

Robotics & teleoperation

Medical & surgical imaging

Machine Vision

Defense & ISR

Live events

Any 1 GbE network

STANDARD

IPMX / VSF TR-10 — full implementation

JPEG XS High + TDC compressed video, NMOS IS-04/05/09/11 discovery and control, PEP/HKEP encryption, RTCP non-PTP timing. Interoperability tested with several deployed equipments, and the wider AIMS ecosystem.

KEY DIFFERENTIATOR

Smallest IPMX design on an FPGA SoC

Runs on small AMD Zynq Ultrascale+ — the lowest BOM cost and power envelope for an IPMX-compliant camera or AV endpoint. Compatible with HDMI and DisplayPort gateway devices.

IPMX endpoints

Matrix switchers & extenders

Wall Controllers

Presentation systems

AV-over-IP OEM devices

New to IPMX, or want to understand how it compares to SMPTE ST 2110? Read our IPMX & ST 2110 guide →

STANDARD

SMPTE ST 2110 — full stack on FPGA SoC

ST 2110-22 compressed video, -30 audio, -21 traffic shaping (N and W), -10 ANC. PTP IEEE 1588 / SMPTE 2059 follower. ST 2022-7 dual-path redundancy, ...

KEY DIFFERENTIATOR

Bridge the Studio to Any Network with JPEG XS — including 1 GbE

Bridge the studio to any network with JPEG XS. intoPIX Hardware-accelerated JPEG XS replaces uncompressed video in your workflow while adding unique wavelet scalability: full resolution scaling during encode or decode, with no additional processing cost. This enables, for instance, a secondary independent PROXY stream at qHD (960×540, ~50 Mbps) transmitted simultaneously alongside the full 4K MAIN stream — both over a single 1 GbE link, independently selectable by receivers via NMOS.

Studio & PTZ cameras

Portable encoders

Contribution links

Control rooms

Live production

New to SMPTE ST 2110, or want to understand how it compares to IPMX? Read our IPMX & ST 2110 guide →

Standards & compatibility:

    2110

SYSTEM ARCHITECTURE

Inside the Titanium FPGA SoC EDK

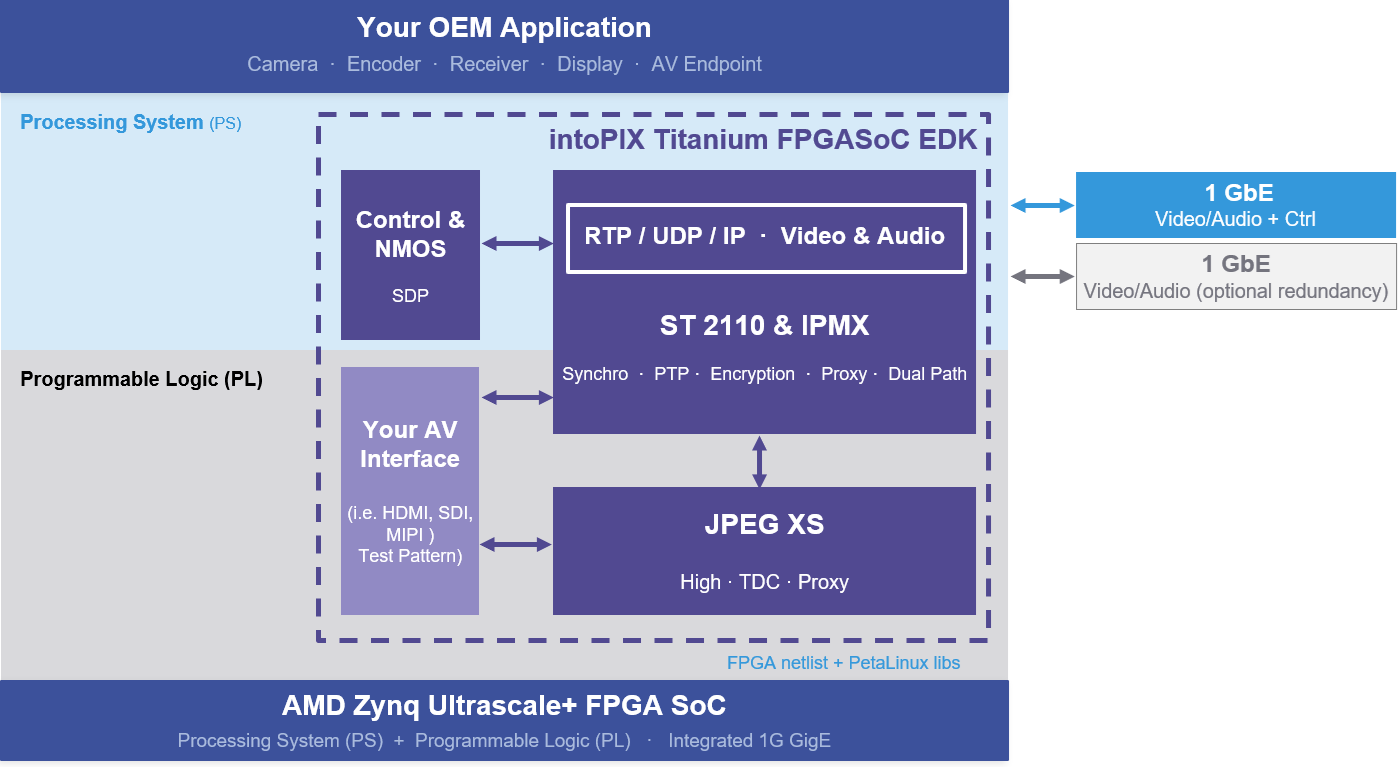

FPGA IP cores in the Programmable Logic combined with compiled PetaLinux libraries on the Processing System — delivered as a complete, ready-to-integrate TX or RX package for AMD Zynq Ultrascale+. Your application and AV interface sit on top, entirely in your control.  All running over the AMD Zynq Ultrascale+ integrated 1G GigE port .

WHY THE TITANIUM FPGA SOC

Software first: a smaller, more flexible FPGA design

Hard logic first

Typical ST 2110 / IPMX design

Software first

Titanium FPGA SoC EDK

Where the work happensShare of total processing
FPGA logicARM cores
~5%The processor sits mostly idle.
Work shared evenly. The processor is put to work.
Network
Dedicated Ethernet MAC and network IP built in FPGA logic
1 GbE on the Zynq’s built-in port, or 10 GbE from the FPGA’s transceivers, with most of the network stack running on the ARM cores
Chip size & cost
The IP stack in logic needs more FPGA logic and memory, or must be cut down to fewer features to fit a smaller FPGA
Compact, cost-effective FPGA. Most of the IP stack runs on the ARM cores, so far less FPGA logic is needed.
All-in-one
ST 2110 / IPMX stack, JPEG XS codec and network IP combined from separate IP cores
ST 2110, IPMX, JPEG XS, NMOS, PTP and more, pre-integrated in one IPMX-certified package that keeps growing
Updates
New features mean rebuilding FPGA logic, which is slow, unpredictable and costly
Most features live in software on the SoC, so updates ship as fast firmware releases and new features reach your products sooner

AVAILABLE EDK PACKAGES

Choose the right TX or RX package for your design

Pre-validated packages for AMD Zynq Ultrascale+ — TX (sender/camera) and RX (receiver/display) designs available today, with add-on options for encryption, redundancy, and proxy streams.

IPX-TitaniumEDK-TX-1G-4K-ZU+
4K60 422 AV Sender

ST 2110 / IPMX · 4:2:2 · JPEG XS High

Available
1G GigE
Q3 2026

+ OTHER PACKAGES PLANNED
Stay Tuned

or contact our team

IPX-TitaniumEDK-TX-1G-4KF-ZU+
4K60 FIP 422/444 AV Sender

JPEG XS High & TDC · 4:2:2 & 444

Available
1G GigE

IPX-TitaniumEDK-TX-1G-4KFP-ZU+
4K60 FIP 422/444 AV Sender with Proxy

+ JPEG XS High & TDC · 4:2:2 & 4:4:4

Available
1G GigE
NEW

IPX-TitaniumEDK-RX-1G-4KF-ZU+
4K60 FIP 4:2:2/4:4:4 Receiver

JPEG XS High & TDC decoder

Just Released
1G GigE
Q3 2026

+ OTHER PACKAGES PLANNED
Stay Tuned

or contact our team

Add-on — TX & RX
PEP / HKEP Encryption

Privacy Encryption Protocol (VSF TR-10-13) · AMWA BCP-005-03

Available
1G GigE
NEW

Add-on — RX
Frame Buffer / Synchronizer IP Core

Frame repeat and frame sync always for the lowest latency.

Available

Add-on — TX
ST 2022-7 Dual-Path Redundancy

Mission-critical protection via dual 1G interfaces

Available
Dual 1G GigE
NEW

Add-on — RX
Audio Sample Rate Converter IP Core

Frame repeat and frame sync always for the lowest latency.

Just released

Add-on — TX
JPEG XS Proxy 1K Stream

Secondary stream up to 960×540 (qHD · ~50 Mbps · dynamic bitrate - Zero latency

Available
Q4 2026

More Add-on
Stay Tuned

or contact our team

Ask for any custom configurations: small HD logic-optimized variants, specific configurations, and design services. We offer custom packages and design services tailored to your target platform, resolution, and feature set.

​​TECHNICAL SPECIFICATIONS

Full specification reference

Video
 Standard SMPTE ST 2110-22 / IPMX
Codec JPEG XS High / TDC, with optional dual-stream: full-resolution + qHD proxy. Customizable bit-rate control and bandwidth optimization
 Resolutions 720p · 1080i · 1080p · 2160p · Custom
 Frame rates 24 / 25 / 29.97 / 30 / 59.94 / 60 / 120 fps
 Color YCbCr 4:2:2 · RGB 4:4:4
 Chroma 4:2:0 · 4:2:2 · 4:4:4
 Bit depth 8 / 10 / 12-bit
Networking & Protocols
 InterfacePS Integrated 1G GigE (Single/Dual)
 TransportRTP over UDP/IP · Unicast & Multicast
· SMPTE 2110 · IPMX (VSF TR10)
 Synchronous TimingPTP IEEE 1588 / SMPTE ST 2059 follower
 Asynchronous TimingRTCP-based system timing (non-PTP networks)
Stream Description and Control ManagementSDP (Session Description Protocol)  · NMOS, including:
IS-04 Discovery & Registration
IS-05 Connection Management
IS-09 System Parameters
IS-11 Stream Compatibility
 Traffic shapingSMPTE ST 2110-21 Narrow (N) and Wide (W)
 Encryption AES128 Encryption  · PEP - VSF TR10-13  & HKEP (option)
RedundancySMPTE ST 2022-7 seamless dual-path protection -ensures zero packet loss and uninterrupted video, even in the case of network failure. (option)
Audio
 StandardSMPTE ST 2110-30 / IPMX VSF TR-10-3 / AES67
 Channels2 to 8 (more channels - optional)
 FormatPCM digital / 24-bit / AES67
Sample rate44.1 kHz, 48 kHz, 96 kHz
Platform & Development
 Target SoCAMD Zynq Ultrascale+
(low FPGA footprint and DDR needs, efficient CPU/ARM usage, and power consumption ) -
 OSPetaLinux
 APIC/C++ · GStreamer framework
 AV interfaceAXI-Stream (to interface with HDMI, SDI, MIPI,...)
Dev BoardAMD ZCU106 evaluation kit
AMD Kria evaluation kit -
NEW
Web GUIWeb GUI example to start, test, and develop rapidly

Ready to integrate the Titanium FPGA SoC EDK?

Talk to our engineers about your design requirements. We offer custom design services to accelerate your project — from evaluation kit to production.

?
?
